| .01 |
-4BA |
1 |
kickstart cover |
| .02 |
-326X | 1 |
cover cap |
| .03 |
-3BA | 1 |
kickstart case |
| .04 |
-291X | 1 |
washer |
| .05 |
-110BA-2 | 1 |
stud 5/16"BSW x 2" |
| .06 |
-286X |
3 |
stud ¼" BSW x 2½" |
| .07 |
-152X |
5 |
nut 5/16"BSW x ¼"hex |
| .08 |
-63X |
4 |
nut ¼" BSW |
| .09 |
-60X-8 |
1 |
stud ¼" BSW x 3 1/8" |
| .10 |
-60X-9 |
1 |
stud 5/16" BSW x 3 3/16" |
| .11 |
-60X-6 |
2 |
stud 5/16" BSW x 1 1/16" |
| .12 |
-110BA-1 |
1 |
stud 5/16" BSW x 1 11/16" |
| .13 |
-1BAP |
1 |
gearbox shell |
| .14 |
-OS 52 |
1 |
washer fiber drain plug |
| .15 |
-56BA |
1 |
drain plug |
| .16 |
-95X |
1 |
nut, bearing, 2BA |
| .17 |
12-7-4 |
1-2 |
blanking disc |
| .18 |
-88X |
1 |
washer cover layshaft |
| -50B |
1 |
kaick start complete (19-23) |
|
| .19 |
-214X |
1 |
washer |
| .20 |
-103X |
1 |
washer plain |
| 12-4-3 |
1 |
||
| .21 |
-147X |
1 |
washer, spring |
| .22 |
-115X |
1 |

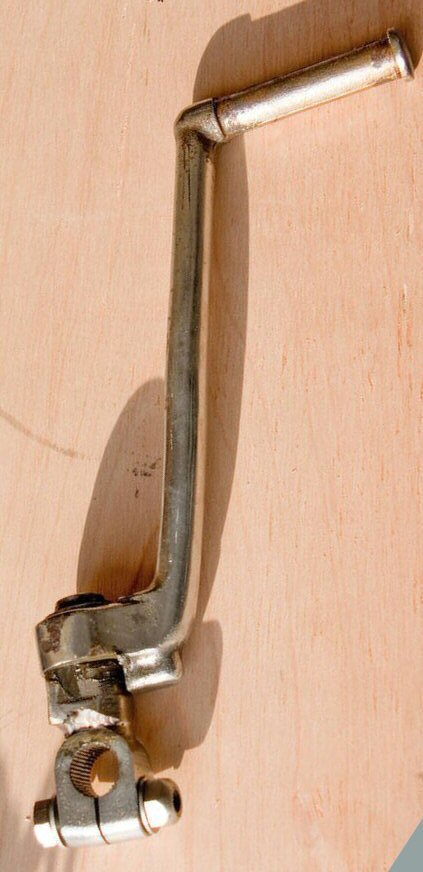

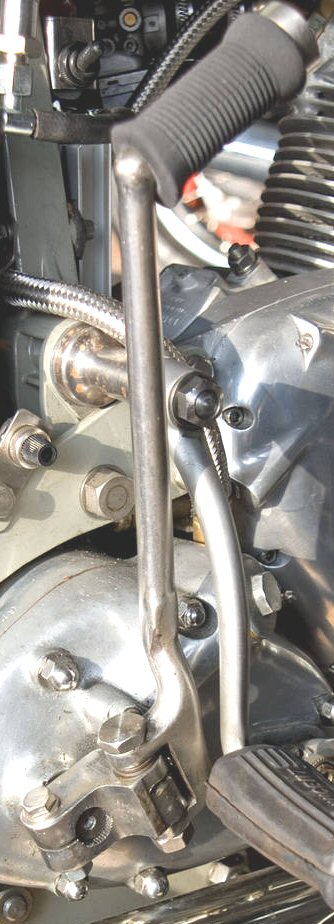

kickstart lever, folding |
| .23 |
-194X |
1 |
kickstart lever |
| .24 |
-315X |
1 |
bolt, pinch |
| .25 |
12-4-1 |
1 |
washer, spring 3/8" |
| .26 |
-144X |
1 |
nut, pinch bolt |
| .27 |
OF73 |
1 |
washer, steel |
| .28 |
OF42/1 |
1 |
felt ring |
| .29 |
-200X |
1 |
kickstart bush outer |
| .30 |
-199X |
1 |
kickstart shaft |
| .31 |
-199XAS |
1 |
kickstart quadrant assembly |
| .32 |
-201X |
1 |
bush, kickstart inner |
| .33 |
-202X |
1 |
stop peg |
| .34 |
-134X |
1 |
stop, rubber w/band KS |
| .34 |
-130X |
1 |
kick start spring |
| .35A |
35-2-1 |
1 |
peg for kick start spring |
| .36 |
10-2-2 |
1 |
¼" BSF bolt x 1 ¼" |
| .36 |
10-2-1 |
1 |
¼" washer, split lock |
| .36 |
11-2-1 |
1 |
¼" BSF nut |
| .37 |
-50A |
1 |
gear change assembly |
| .38 |
27-8-3 |
1 |
felt washer |
| .39 |
-C0105 |
1 |
sector spindle screw |
| .40 |
-C097 |
1 |
neutral indicator - alloy |
| .41 |
-C097-1 |
1 |
gear indicator - alloy |
| .42 |
-C095 |
1 |
bolt, gear chg levr bush |
| .43 |
-C054 |
1 |
bush control lever |
| .44 |
-C090 |
1 |
sector spindle |
| .45 |
-287X |
1 |
nut, 5/16" x 26TPI |
| .46 |
27-7-2 |
1 |
felt washer |
| .47 |
-C091 |
1 |
bush spindle (fit to KS case) |
| .48 |
-C094 |
1 |
sleeve, ratchet footchg |
| .49 |
-CO53 AS |
1 |
control quadrant assem |
| .50 |
-161XAS |
1 |
gear sector assembly |
| .51 |
-CO51 |
1 |
ratchet |
| .52 |
-C052 |
1 |
pawl, footchg |
| .53 |
-CO56 |
1 |
cover, spring box |
| .54 |
-C049 |
1 |
spring box |
| .55 |
-C066 |
2 |
spring main |
| -- |
-C058 |
2 |
plate, pawl |
| .56 |
-CO59 |
2 |
plate main spring |
| .57 |
-C067 |
2 |
spring, pawl |
| .58 |
-328X |
1 |
clutch cup (adj sleeve) |
| .59 |
-64X |
1 |
screw, ¼" x 21mm |
| .60 |
-331X |
1 |
sleeve nut, clutch adj |
| .61 |
-329X |
1 |
fork clutch |
| 61:1 |
-175X |
1 |
lever operating |
| 61:2 |
-66X |
1 |
pin, clutch operating |
| 61:3 |
-329X-1 |
1 |
fork bolt, clutch op |
| .62 |
-330X |
1 |
plunger, clutch op |
| .63 |
-70X |
1 |
nut, mainshaft KS end |
| .64 |
-41BA |
1 |
driving ratchet |
| .65 |
-38BA |
1 |
ratchet pinion |
| .66 |
-40BA |
1 |
spring, ratchet pinion |
| .67 |
-39BA |
1 |
bush, ratchet pinion |
| .68 |
-37-2BA |
1 |
retaining ring, main brg |
| .69 |
-37BA |
1 |
bearing 20x52x15, main |
| .70 |
-37-1BA |
1 |
washer, for main brg .69 |
| .71 |
-28X |
1 |
rod, steel, clutch |
| .71A |
-- |
1 |
ball, steel ¼" clutch rod |
| .72 |
-10BA |
1 |
mainshaft |
| .73 |
-24BA |
1 |
third gear 30 teeth mnshft |
| .74 |
-14BA |
1 |
slider gear 26/20 teeth |
| .75 |
-15BA |
1 |
gear, driving 33 teeth |
| .75:1 |
-223X |
2 |
bush |
| .76 |
-199X |
2 |
bush, ks case/gb shell |
| .77 |
-28BA |
1 |
gear 21T layshft |
| .78 |
-26BA |
1 |
second gear layshft 28 teeth |
| .79 |
-29BA |
1 |
layshft clutch internal gear |
| .80 |
-30BA |
1 |
layshaft w/bushes |
| .81 |
-27BA |
1 |
first gear layshaft 34tooth |
| .82 |
-25BA |
1 |
third gear layshaft 24tooth |
| .84 |
-160X |
1 |
bush, camshaft ks end |
| .85 |
-45BA |
1 |
camshaft |
| .86 |
-163X |
1 |
pawl - footchg |
| .87 |
-193X |
1 |
spring pawl |
| .88 |
-98X |
1 |
plug, spacing footchg |
| .89 |
-192X |
12 |
roller, 3/16"x3/16" cmshft |
| .90 |
-159X |
1 |
bush, camshaft gb end |
| .91 |
-43BA |
1 |
fork, layshaft |
| .92 |
-158BA |
2 |
cotter pin, 3/32"x3/4" |
| .93 |
-157X |
2 |
peg, footchg |
| .94 |
-42BA |
1 |
fork, mainshaft |
| .95 |
-63BA |
1 |
locating ring - driving gear |
| .96 |
-219X |
1 |
bearing 1.5" x 72mm x 17mm |
| .97 |
-23BA |
1 |
spacer collar, sprocket, 15/32" |
| .98 |
-61BA |
2 |
washer, gland |
| .99 |
-112BA |
1 |
gland, drive bearing |
| .100 |
-79X |
1 |
retaining ring, bearing |
| .101 |
-22A |
1 |
sprocket 18T, 5/8"x3/8" |
| .102 |
-17-1BA |
1 |
lock washer |
| .103 |
-218X |
1 |
nut |
| .104:1 |
-36X-3 |
1 |
washer, thick |
| .104:2 |
-36X-2 |
1 |
washer, thin |
| .105 |
-35X |
24 |
rollers, clutch (¼"x 6mm) |
| .106 |
-34X |
1 |
race, clutch rollers |
| .107 |
-- |
not used Comet |
|
| .108 |
-71X |
1 |
washer, mainshft |
| .109 |
-349X |
1 |
washer, lock mainshft |
| .110 |
-69X |
1 |
nut, clutch main |
| .111:1 |
-2X |
1 |
center, clutch hub 5 hole |
| .111:2 |
-24X |
5 |
studs |
| .112 |
-7X-1X |
1 |
clutch basket w/sprocket |
| .118 |
-6X |
6 |
plate plain |
| .119 |
-23X |
5 |
nut, clutch adj |
| .120 |
-21X |
5 |
springs, clutch |
| .121 |
-22X |
5 |
cups, clutch spring |
| .122:1 |
-3X |
5 |
plates lined |
| .122:2 |
-4X |
120 |
inserts, clutch |
| .123 |
-18X |
1 |
spring plate, clutch |
